Dimmable And Tunable COB LED High CRI Ra80/Ra90/Ra95 TB9-1510-RGBCW

Brand Name : TYF

Model Number : TB9-1510-RGBCW

Place of Origin : China

Certification : LM80, RoHS and IEC\EN62471

MOQ : 1Kpcs

Price : Please contact sales team

Packaging Details : Please contact sales team

Delivery Time : 10-20 workdays

Payment Terms : T/T

Supply Ability : 200Kpcs

Series : Dimming And Tunable COB LED

SDCM : 2 Step/ 3 Step

Power(W) : 4+4+4+12+12

Voltage(V) : 24+24+24+24+24

Current(mA) : 160+160+160+320+320

CRI : Ra80/Ra90/Ra95

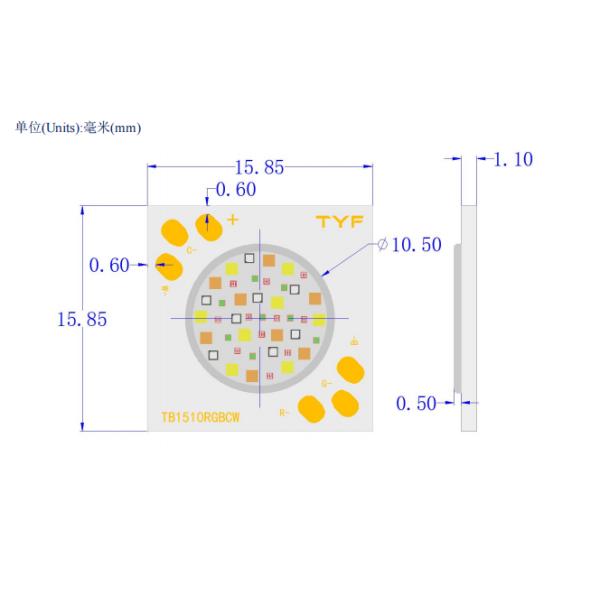

Size : Please Refer To The Datasheet

Contact Now

Dimmable LED Lamp Dimming And Tunable COB LED High CRI Ra80/Ra90/Ra95 TB9-1510-RGBCW

Product Specifications

Attribute	Value
Series	Dimming And Tunable COB LED
SDCM	2 Step/ 3 Step
Power(W)	4+4+4+12+12
Voltage(V)	24+24+24+24+24
Current(mA)	160+160+160+320+320
CRI	Ra80/Ra90/Ra95
Size	Please Refer To The Datasheet

Product Description

Dimmable And Tunable COB LED High CRI Ra80/Ra90/Ra95 TB9-1510-RGBCW

The TYF TB9-RGBCW Series offers high efficacy, high color rendering index (Ra), low power consumption, a wide viewing angle, and a compact form factor. These characteristics combine to make this LED package an excellent choice for lighting applications.

Applications

Commercial Lighting
Home Furnishing Lighting
Intelligent Lighting

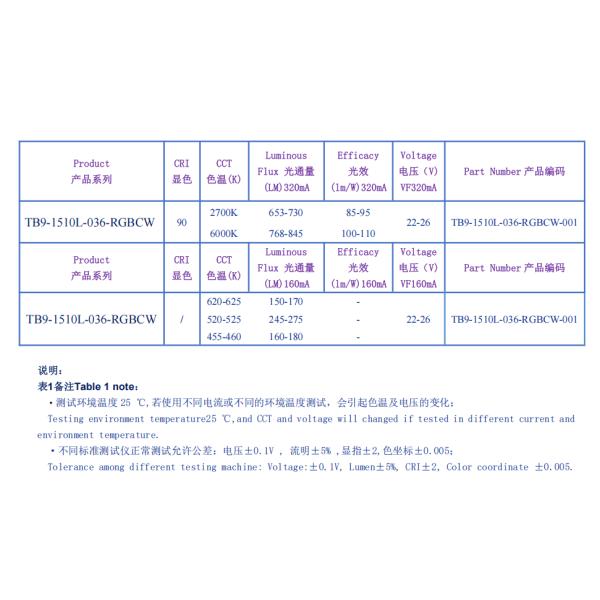

Electrical and Optical Characteristics (Tj=25℃)

Keywords: Dimming Cob LED, Tunable COB LED, Dimmable LED Chip

Product Tags:

dimmable COB LED lamp

tunable LED high CRI

RGBCW dimming COB LED

Wholesale Dimmable And Tunable COB LED High CRI Ra80/Ra90/Ra95 TB9-1510-RGBCW from china suppliers

Dimmable And Tunable COB LED High CRI Ra80/Ra90/Ra95 TB9-1510-RGBCW Images
